FGI 10kV~13.8kV Indoor Type Static Var Generator with Liquid Cooling– Seamless Power, Fluctuation Suppression, EMC Compliant

Detail Information

Highlight:

EMC Compliance Static Var Generator

Product Description

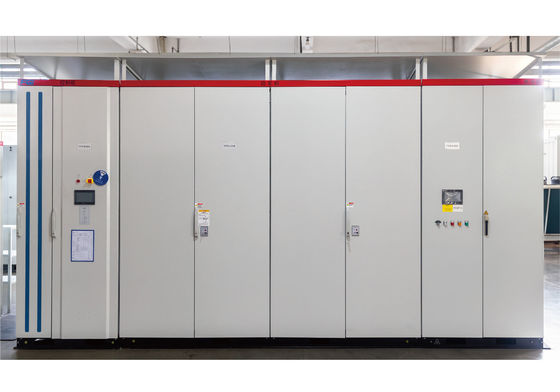

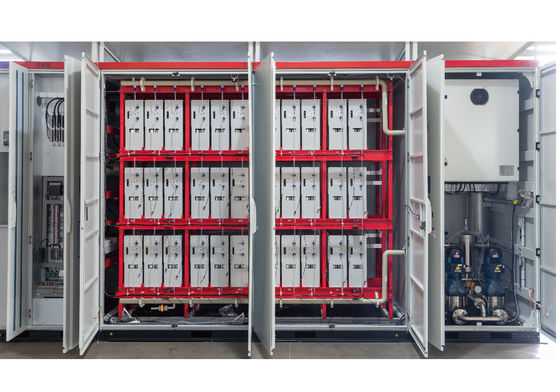

FGI 10kV~13.8kV Indoor Type Static Var Generator with Liquid Cooling

Seamless power solution with fluctuation suppression and EMC compliance for industrial power quality management.

Key Features

Extreme Ride-Through: Rapid recovery from grid voltage dips/surges with automatic adaptation
Voltage Stabilization: Dynamic reactive current provision for fluctuating loads like arc furnaces
Dual Power Reliability: 380VAC/220VAC or 220VDC control system with seamless backup switching
EMC Compliant: Anti-interference cabinet design passing rigorous electromagnetic tests
Redundant System: Optional dual-master control and automatic bypass for high availability

Technical Specifications

Parameter	Specification
Rated Voltage	10kV±10%～13.8kV±10%
Frequency	50/60Hz with short-term fluctuation tolerance
Output Capacity	±0.1Mvar～±200 Mvar
Response Time	<5ms
THDi	<3%
Cooling Method	Water cooling/Air cooling
Operating Temperature	-35℃～ +40℃

Dimensions & Capacities

Voltage (kV)	Capacity (Mvar)	Dimensions W×D×H (mm)	Weight (kg)
10~13.8	1.0～10.0	5200×1400×2400	2850
11.0～15.0	5800×1400×2400	3050
16.0～25.0	8700×1400×2400	3850～4450

Industry Applications

Renewable Energy Integration: Stabilizes voltage fluctuations in solar/wind farms, improves power factor compliance
Industrial Power Quality: Compensates for voltage drops and low power factors in heavy industrial loads
Grid Stability: Maintains voltage stability in long-distance power transmission systems
