10kV Outdoor Air Cooled Static Var Generator SVG Model G42 Perfect For Power Control

Detail Information

Product Description

Detail Information

Highlight:

Air Cooled Static Var Generator SVG

10kV Air Cooled SVG

Outdoor Air Cooled SVG

Product Description

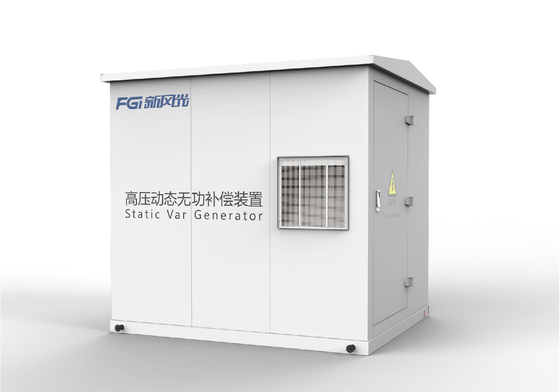

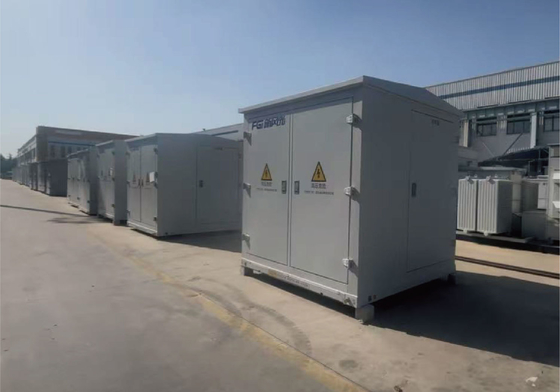

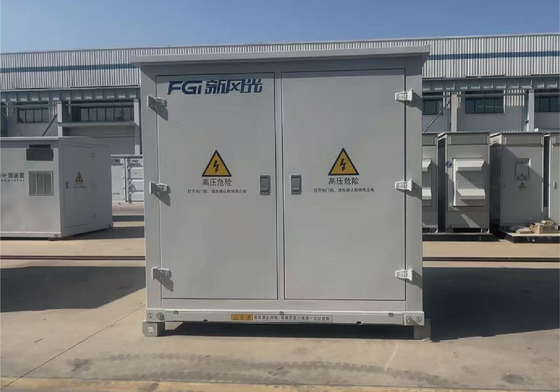

10kV Outdoor Air-Cooled Static Var Generator (SVG) Model G42

High Reliability, Fast Dynamic Response, Modular Design

Product Description

The 10kV Outdoor Air-Cooled Static Var Generator (SVG) Model G42 is a robust and reliable reactive power compensation device designed for outdoor medium-voltage power distribution networks. Engineered to improve power quality, enhance voltage stability, and optimize energy efficiency, this SVG model is an ideal solution for industrial sites, substations, and commercial applications requiring flexible and efficient reactive power management.

Key Features

Rated Voltage: Suitable for 10kV medium voltage outdoor electrical systems.
Air Cooling System: Utilizes an efficient forced air cooling design, ensuring reliable heat dissipation under varying environmental conditions without the need for complex cooling infrastructure.
Outdoor Rugged Enclosure: Designed with weatherproof and corrosion-resistant materials, the enclosure meets IP55 protection standards, ensuring reliable operation in harsh outdoor environments.
Compact Modular Design: Facilitates easy installation, maintenance, and system expansion as required.
Fast Dynamic Reactive Power Compensation: Equipped with advanced power electronic converters and control algorithms to provide rapid response to voltage fluctuations and load changes.
Intelligent Control System: Integrated digital control platform with remote monitoring capabilities via standard communication protocols (Modbus, TCP/IP), enabling real-time diagnostics and seamless integration with SCADA systems.
Energy Efficient and Environmentally Friendly: Air cooling eliminates the need for water or refrigerant systems, reducing maintenance complexity and environmental impact.
Safety Features: Includes overcurrent, overvoltage, temperature protection, and fault alarms to ensure safe operation.

Dimensions

Voltage class(kV)	Rated capacity(Mvar)	Dimension WDH(mm)	Weight(kg)	Reactor type
10~13.8	0.5~0.9	320023502591	3000	Iron core reactor
10~13.8	1.0~4.0	550023502800	6500~6950	Iron core reactor
10~13.8	5.0~6.0	550023502800	6700~6950	Iron core reactor
10~13.8	7.0~12.0	670024382560	6700~6950	Air core reactor
10~13.8	13.0~21.0	970024382560	9000~9700	Air core reactor

Technical Specifications

Name	Specification
Rated voltage	10kV±10%～13.8kV±10%
Assessment point voltage	10kV±10%～13.8kV±10%
Input voltage	0.9~ 1.1pu; LVRT 0pu(150ms), 0.2pu(625ms)
Frequency	50/60Hz; Allow short-term fluctuations
Output capacity	±0.1Mvar～±200 Mvar
Starting power	±0.005Mvar
Compensation current resolution	0.5A
Response time	<5ms
Overload capacity	>120% 1min
Power loss	<0.8%
THDi	<3%
Control power	380VAC, 220VAC/220VDC
Reactive power regulation mode	Capacitive and inductive automatic continuous smooth adjustment
Communication interface	Ethernet, RS485, CAN, Optical fiber
Communication protocol	Modbus_RTU, Profibus, CDT91, IEC61850- 103/104
Running mode	Constant device reactive power mode, constant assessment point reactive power mode, constant assessment point power factor mode, constant assessment point voltage mode and load compensation mode
Parallel mode	Multi machine parallel networking operation, multi bus comprehensive compensation and multi group FC comprehensive compensation control
Protection	Bus overvoltage, bus low voltage, SVG overcurrent, drive fault, module overvoltage, overcurrent, overtemperature and communication fault; Protection input interface, protection output interface, abnormal system power supply and other protection functions.
Fault handling	Adopt redundant design to meet N-2 operation
Cooling mode	Water cooling/Air cooling
IP degree	IP30(indoor); IP44(outdoor)
Storage temperature	-40℃～+70℃
Running temperature	-35℃～ +40℃
Humidity	<90% (25℃), no condensation
Altitude	<=2000m (above 2000m customized)
Earthquake intensity	Ⅷ degree
Pollution level	Grade IV

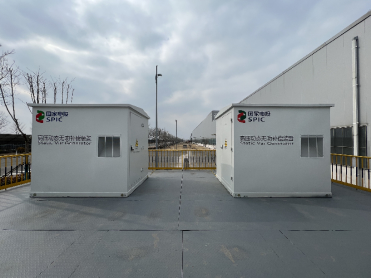

Case Study: Largest Distributed Photovoltaic Project

Project: FAW-Volkswagen Distributed Photovoltaic Project
Address: Qingdao City
Model: FGSVG-C1.0/10-O
Capacity: ±1Mvar (5 units)

Benefits

Enhanced Power Quality: Minimizes voltage fluctuations, harmonics, and flicker in outdoor medium-voltage networks.
Robust and Reliable: Weatherproof design ensures long-term operation in outdoor environments.
Cost Effective: Low maintenance air cooling system reduces operational expenses.
Easy Integration: Supports common industrial communication protocols for system interoperability.
Flexible Installation: Modular design supports scalable reactive power compensation tailored to site requirements.

Applications

1. Renewable energy integration in solar and wind farms: Intermittent generation causes voltage fluctuations, SVG offers:

Injects or absorbs current in real time to stabilize voltage.
Improves power factor compliance with grid codes.
Enhances grid reliability, reducing voltage flicker.

2. Industrial power quality management: Heavy industrial loads often lead to voltage drops and low power factors, SVG offers:

Dynamic current compensation, stabilizing voltage and improving power factor.
Reduced energy costs by minimizing reactive power penalties.
Enhanced equipment protection by preventing voltage dips.

3. Grid and Transmission Line Stability: In long-distance power transmission, SVG offers:

Voltage stability during load variations.
Power factor regulation, reducing line losses.
Grid reliability by preventing voltage collapse.

About Us

With over 50 years of R&D experience since 1970, we are fully capable of meeting the grid standards of various countries.

For the past 20 years, we have been dedicated to the research, development, and manufacturing of SVG products. With steadily increasing customer satisfaction, we are confident in our ability to solve your power quality challenges.

Production Base: Jincheng Road, Economic Development Zone, Wenshang County, Jining City, Shandong Province, China
