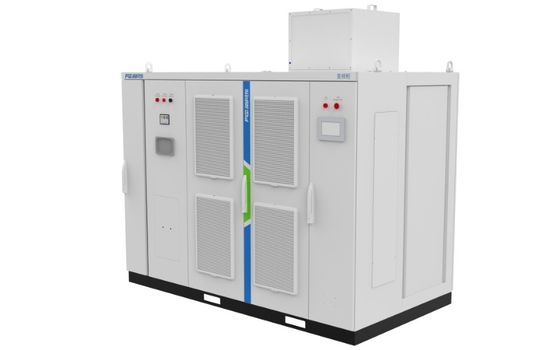

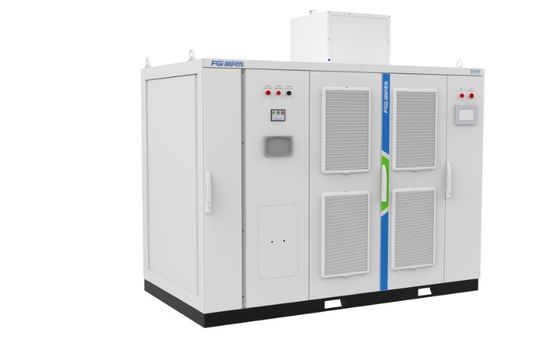

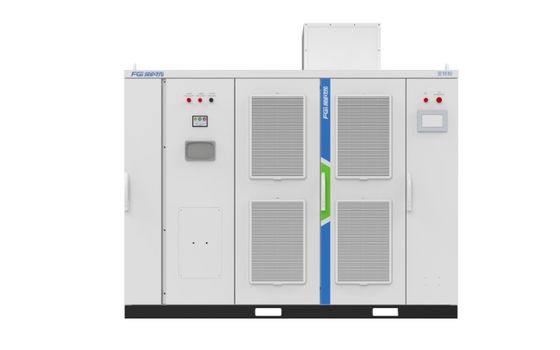

High Voltage 200kW-1000kW G7 Integrated VFD Variable Frequency Drive Forced Air Cooling

name

High Voltage 200kW-1000kW G7 Integrated VFD Variable Frequency Drive Forced Air Cooling

Detail Information
Product Description
Detail Information
Place of Origin:
China
Power Range:
200kW-560kW (6kV), 200kW-1000kW (10kV)
Cooling Mode:
Forced Air Cooling
Output Voltage:
Three Phase 0-6kV, 0-10kV
Input Phase Number:
Three Phase
Input Frequency:
50Hz, 60Hz
Input Voltage:
6kV, 10kV
Highlight:

G7 three phase vfd

,

high voltage 3 phase vfd drive

,

G7 vfd variable frequency drive

Product Description
High Voltage 200kW-1000kW G7 Integrated VFD Variable Frequency Drive Forced Air Cooling
Product Specifications
Attribute Value
Power range 200kW-560kW (6kV), 200kW-1000kW (10kV)
Cooling mode Forced air cooling
Output voltage Three phase 0-6kV, 0-10kV
Input phase number Three phase
Input frequency 50Hz, 60Hz
Input voltage 6kV, 10kV
Dimensions
JD-BP37-F series (6kV) - (including Switchgear)
Model Adaptive motor power Width (mm) Depth (mm) Height (mm) Weight (kg)
JD-BP37-200F～JD-BP37-630F 200kW/6kV～630kW/6kV 2700 1500 1900 1900～2410
JD-BP38-F series (10kV) - (including Switchgear)
Model Adaptive motor power Width (mm) Depth (mm) Height (mm) Weight (kg)
JD-BP38-250F～JD-BP38-1000F 250kW/10kV～1000kW/10kV 2700 1500 1900 2160～3100
Key Features
  • Based on two quadrant synchronous/asynchronous motor platform design
  • Integrated control cabinet, power cabinet, transformer cabinet and switching cabinet for convenient on-site installation
  • Load type: Fan and water pump load
High Voltage 200kW-1000kW G7 Integrated VFD Variable Frequency Drive Forced Air Cooling 0
Application Areas
High Voltage 200kW-1000kW G7 Integrated VFD Variable Frequency Drive Forced Air Cooling 1

High-voltage inverters (VFD) can be used in various industry applications including:

  • Mining, chemical, petroleum, steel, and building materials industries
  • Powering belt conveyors, compressors, fans, various pumps, ball mills, elevators, etc.

Operational Benefits:

  • Flexible control with soft start/stop for smooth operation
  • Fast adjustment rate to meet various working conditions
  • Mechanical redundancy for prompt failover to ensure continuous operation
  • Minimal starting current impact and stable operation reduces maintenance workload
  • Enhanced system safety and reliability
