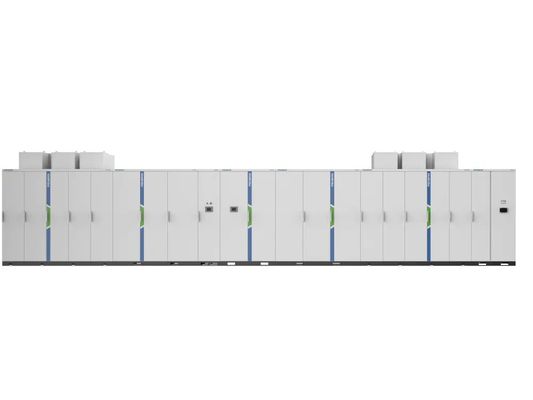

G7 Liquid Cooling High Voltage Variable Frequency Drive VFD 6kV 10kV

G7 Liquid Cooling High Voltage Variable Frequency Drive VFD 6kV 10kV

G7 Liquid Cooling High Voltage Variable Frequency Drive VFD 6kV 10kV

Detail Information
Product Description
Detail Information
Place of Origin:
China
Power Rating:
6kV: 6000kW-12000kW; 10kV: 10500kW-20000kW
Cooling Method:
Liquid Cooling
Output Voltage:
Three Phase 0-6kV, 0-10kV
Input Phase Number:
Three Phase
Input Frequency:
50Hz, 60Hz
Input Voltage:
6kV, 10kV
Highlight:

G7 vfd drives

,

high voltage variable frequency drive

,

Liquid cooling high voltage VFD

Product Description
G7 Liquid Cooling High Voltage Variable Frequency Drive VFD 6kV 10kV
Product Specifications
Power rating 6kV: 6000kW-12000kW; 10kV: 10500kW-20000kW
Cooling method Liquid cooling
Output voltage Three phase 0-6kV, 0-10kV
Input phase number Three phase
Input frequency 50Hz, 60Hz
Input voltage 6kV, 10kV
Key Features
Power Unit Cabinet
  • Main Components: Power Unit (including HV-IGBT), Current Sensor, Water Cooling Pipeline
  • Main Functions:
    • Controls HV-IGBT to achieve frequency conversion speed regulation and automatic bypass functions
    • Utilizes carrier phase shifting technology for perfect sine wave output
    • Built-in cooling medium transported by circulating pump to radiator
Water Cooler
G7 Liquid Cooling High Voltage Variable Frequency Drive VFD 6kV 10kV 0
  • Main Components: Main circulating pump, Filter, Circulating pipeline, Air radiator
  • Main Functions:
    • Promotes cooling medium circulation between radiator and power devices
    • High-level water tank maintains constant system pressure
    • Absorbs cooling medium volume changes for system stability
Concept Drive Circuit and Busbar Design
  • Higher reliability
  • Higher power density
  • Lower voltage spikes
G7 Liquid Cooling High Voltage Variable Frequency Drive VFD 6kV 10kV 1
Typical Load Applications
  • Blast furnace blower
  • Oxygen compressor
  • Boiler induced draft fan
  • Sintering main exhaust fan
  • Various fan and pump applications
JD-BP37-W Series (6kV) Specifications
Model Power Rating Dimensions (W×D×H mm) Weight (kg)
JD-BP37-6000FF1MW ~ JD-BP37-7000FF1MW 6000~7000 10100×1700×2600 16800~17700
JD-BP37-8000FF1MW ~ JD-BP37-11500FF1MW 8000~11500 10300×1800×2800 21300~26500
Note: Dimensions are for reference only. Please refer to project drawings for exact specifications. Product specifications may change due to upgrades.
JD-BP38-W Series (10kV) Specifications
Model Power Rating Dimensions (W×D×H mm) Weight (kg)
JD-BP38-10500FF1MW ~ JD-BP38-11500FF1MW 10500~11500 15400×1700×2600 26500~27900
JD-BP38-14000FF1MW ~ JD-BP38-19000FF1MW 14000~19000 15800×1800×2800 32100~39100
Note: Dimensions are for reference only. Please refer to project drawings for exact specifications. Product specifications may change due to upgrades.
Production Base: Jincheng Road, Economic Development Zone, Wenshang County, Jining City, Shandong Province, China
Email: overseas@fengguang.com
Tags:

High Voltage four quadrant inverter

High Voltage 4 quadrant inverter

3250kW four quadrant inverter
