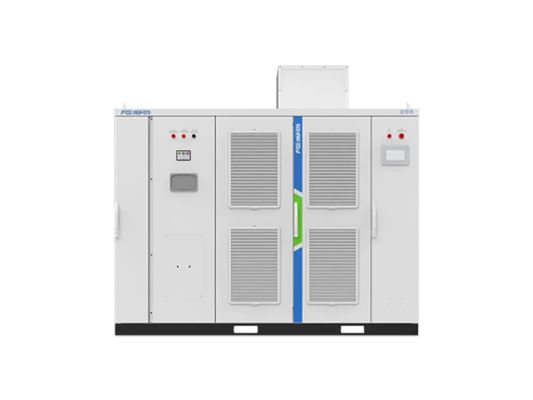

G7 Standard High Voltage Inverter 6kV / 10kV Three Phase VFD

G7 Standard High Voltage Inverter 6kV / 10kV Three Phase VFD

G7 Standard High Voltage Inverter 6kV / 10kV Three Phase VFD

Detail Information
Product Description
Detail Information
Place of Origin:
China
Power Range:
200kW-5000kW (6kV, Two Quadrant), 200kW-2500kW (6kV, Four Quadrant), 200kW-9000kW (10kV, Two Quadrant), 200kW-3250kW (10kV, Four Quadrant)
Cooling Mode:
Forced Air Cooling
Output Voltage:
Three Phase 0-6kV, 0-10kV
Input Phase Number:
Three Phase
Input Frequency:
50Hz, 60Hz
Input Voltage:
6kV, 10kV
Highlight:

VFD variable frequency drive

,

VFD variable frequency drives for sale

,

G7 VFD variable frequency drive

Product Description
G7 Standard high voltage variable frequency drive (VFD)


Product Features:
Based on two / four quadrant synchronous (including permanent magnet synchronous motor) / asynchronous motor platform design and unit sealing design, the whole machine adopts modular design idea and high production efficiency.


Competitive advantages:

Modular design of control system, small harmonic, accurate speed regulation, good sealing of power unit and strong environmental adaptability.


Load type:

Fan and water pump load; Hoist and belt conveyor loads.



Table JD-BP37-F Series (6kV) Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)

ModelAdaptive motor powerDimension and weight
Width (mm)Depth (mm)Height (mm)Weight (kg)
JD-BP37-225F～JD-BP37-560F225kW/6kV～560kW/6kV1700150019001900～2410
JD-BP37-630F～JD-BP37-1120F630kW/6kV～1120kW/6kV2200170021203250～4000
JD-BP37-1250F～JD-BP37-1400F1250kW/6kV～1400kW/6kV3200170024204950～5600
JD-BP37-1600F～JD-BP37-2800F1600kW/6kV～2800kW/6kV3500170024206900～7300
JD-BP37-3250F3250kW/6kV58501700242011750
JD-BP37-4000F4000kW/6kV64501700242011800
JD-BP37-4500F～JD-BP37-5000F4500kW/6kV～5000kW/6kV64501700262012950～13600



Table JD-BP38-F Series (10kV) Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)

ModelAdaptive motor powerDimension and weight
Width (mm)Depth (mm)Height (mm)Weight (kg)
JD-BP38-250F～JD-BP38-1000F250kW/10kV～1000kW/10kV1750150019002160～3100
JD-BP38-1120F～JD-BP38-2000F1120kW/10kV～2000kW/10kV2800170021204320～5720
JD-BP38-2250F～JD-BP38-2500F2250kW/10kV～2500kW/10kV4200170024209380
JD-BP38-2800F～JD-BP38-4500F2800kW/10kV～4500kW/10kV45001700242010900～12500
JD-BP38-5000F～JD-BP38-5600F5000kW/10kV～5600kW/10kV79001700242014000～16500
JD-BP38-5900F～JD-BP38-6800F5900kW/10kV～6800kW/10kV79001800262017600～20350
JD-BP38-8000F～JD-BP38-9000F8000kW/10kV～9000kW/10kV81001800272021500～22800



Table JD-BP37-T series(6kV)Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)

ModelAdaptive motor powerDimension and weight
Width (mm)Depth (mm)Height (mm)Weight (kg)
JD-BP37-280T～JD-BP37-1000T280kW/6kV～1000kW/6kV2200170021202400～4430
JD-BP37-1120T～JD-BP37-1400T1120kW/6kV～1400kW/6kV3200170024205520～5600
JD-BP37-1600T～JD-BP37-2000T1600kW/6kV～2000kW/6kV3500170024205850～6090
JD-BP37-2500T2500kW/6kV55501700242010000



Table JD-BP38-T Series(10kV)Specifications and Dimensions (Excluding Switchgear / Incoming cabinet)

ModelAdaptive motor powerDimension and weight
Width (mm)Depth (mm)Height (mm)Weight (kg)
JD-BP38-250T～JD-BP38-1600T250kW/10kV～1600kW/10kV2800170021203500～6450
JD-BP38-1800T～JD-BP38-2500T1800kW/10kV～2500kW/10kV4200170024209250～9400
JD-BP38-2800T～JD-BP38-3250T2800kW/10kV～3250kW/10kV4500170024209900～9950


Note:
1. The above dimensions are for reference only. Please refer to the project drawings and physical objects for details.
2. Due to product upgrading, the contents of this page will be updated regularly. If you need to buy our products, please refer to the latest product manual.
