FGI 33kV~35kV Indoor Type Static Var Generator with Liquid Cooling – Grid Stability & Revenue Boost Solutions

Detail Information

Document:

Highlight:

33kV~35kV Static Var Generator

Product Description

FGI 33kV~35kV Indoor Type Static Var Generator with Liquid Cooling

Grid Stability & Revenue Boost Solutions

Key Features & Functions

Extreme Ride-Through: Quickly restores normal operation after grid voltage dips or surges, adapting to various grid conditions without manual intervention.
Voltage Fluctuation Suppression: Dynamically provides reactive current to quickly stabilize voltage and suppress flicker for fluctuating loads.
Reliable Dual Power: Control system features dual power supply (380VAC/220VAC or 220VDC) with seamless online backup switching.
EMC Compliant Enclosure: Anti-interference design passes rigorous EMC tests for robust performance in challenging electromagnetic environments.
Redundant & Stable System: Options for dual-master control system and automatic bypass for power units ensure high availability.

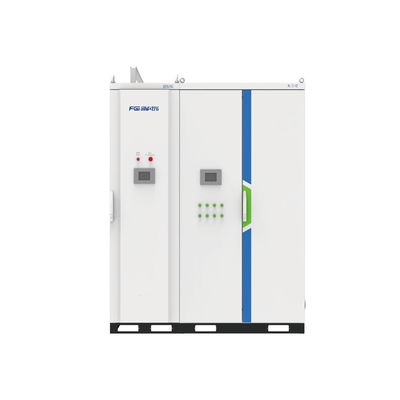

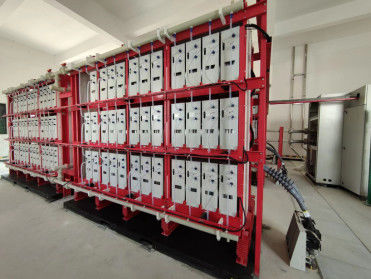

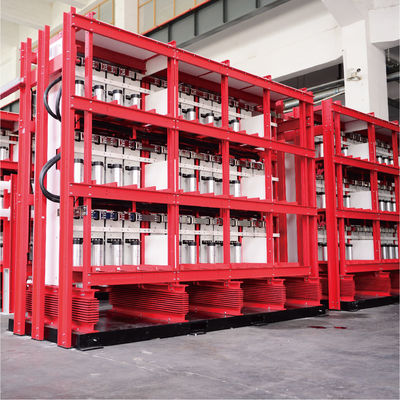

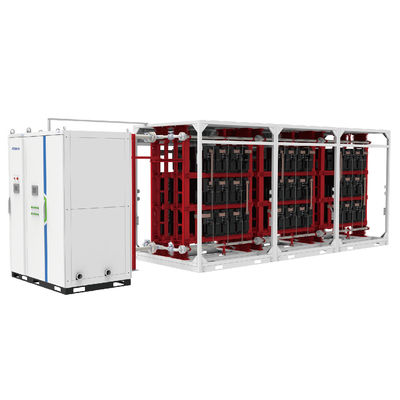

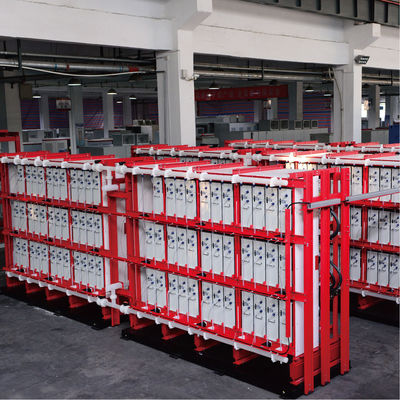

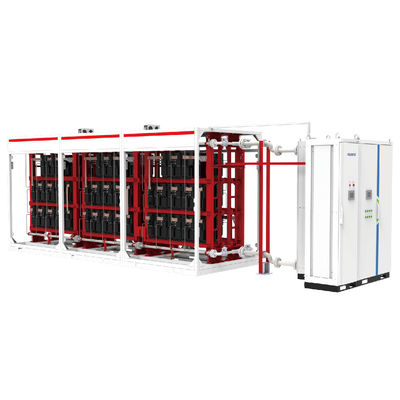

Product Images

Dimensions & Specifications

Voltage class (kV)	Rated capacity (Mvar)	Dimension WDH (mm)	Weight (kg)	Reactor type
33~35	5.0~50.0	740079002600	9000~14000	Air core reactor
	51.0~85.0	1150079002600	15800~24000
	86.0~100.0	1600074002600	18000~28000

Applications

Renewable Energy Integration: Stabilizes voltage fluctuations in solar and wind farms, improves power factor compliance, and enhances grid reliability.
Industrial Power Quality: Provides dynamic current compensation for heavy industrial loads, reducing energy costs and protecting equipment.
Grid Transmission Stability: Maintains voltage stability during load variations, regulates power factor, and prevents voltage collapse.

Key Benefits

Technical Specifications

Parameter	Specification
Rated voltage	33kV±10%～38.5kV±10%
Input voltage	0.9~1.1pu; LVRT 0pu(150ms), 0.2pu(625ms)
Frequency	50/60Hz; Allow short-term fluctuations
Output capacity	±0.1Mvar～±200 Mvar
Response time	<5ms
Power loss	<0.8%
THDi	<3%
Cooling mode	Water cooling/Air cooling
IP degree	IP30(indoor); IP44(outdoor)
