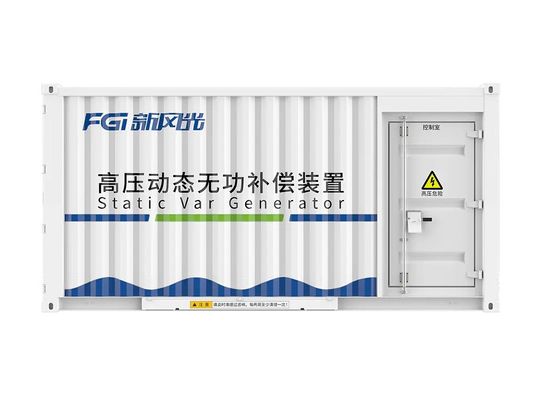

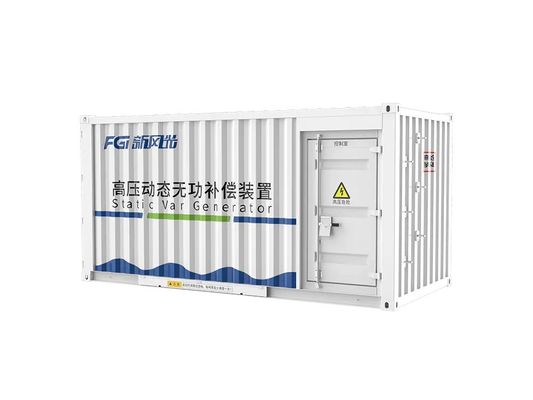

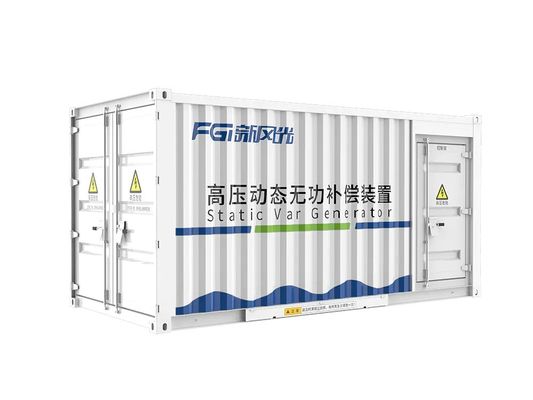

FGI Outdoor IP44 10kV High-Voltage SVG with Enhanced Durability and Precision Control

FGI Outdoor IP44 10kV High-Voltage SVG with Enhanced Durability and Precision Control

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

FGI SVG STATCOM profile.pdf

Highlight:

10kV High Voltage SVG

10kV Static Var Generator

Outdoor Static Var Generator SVG

Product Description

FGI Outdoor IP44 10kV High-Voltage SVG with Enhanced Durability and Precision Control

Dimensions

10kV Static Var Generator(SVG) – Air-cooled type
Voltage class(kV)	Rated capacity(Mvar)	Dimension WDH(mm)	Weight(kg)	Reactor type
10	0.5～0.9	320023502591	3000	Iron core reactor
	1.0~4.0	520024382591	5500~6300	Iron core reactor
	5.0～6.0	520024382591	6700～6850	Iron core reactor
	7.0～12.0	670024382591	6900～6950	Air core reactor
	13.0～21.0	970024382591	8000～12000	Air core reactor

10kV Static Var Generator(SVG) – Liquid-cooled type
Voltage class(kV)	Rated capacity(Mvar)	Dimension WDH(mm)	Weight(kg)	Reactor type
10	1.0～15.0	580024382800	8200～9200	Air core reactor
10	16.0～25.0	930024382800	13000～15000	Air core reactor

Advantages

Utilizes a three-level structure (topology), reducing the voltage stress on individual IGBTs and lowering du/dt.

Employs an LCL filter circuit. The LCL filter circuit can effectively absorb high-frequency harmonics.

Fast response speed, with a full response time of approximately 3.8ms.

The hardware platform is built using components from internationally renowned manufacturers, effectively ensuring product quality.
High-precision analog sampling design.

Application

FGSVG series products can be widely used in petrochemical industry, power system, metallurgy, electrified railway, urban construction and other industries, such as various asynchronous motors, transformers, thyristor converters, frequency converters, induction furnaces, lighting equipment, electric arc furnaces, electric locomotives, hoists, cranes, stamping machines, cranes, elevators, wind turbines, elevators, electric welding machines, resistance furnaces Quartz smelting furnace and other equipment provide high-quality and reliable reactive power compensation and filtering solutions.

FGSVG series products can enhance power transmission capacity, reduce power loss, compensate reactive power, control harmonics, suppress flicker, stabilize grid voltage, balance three-phase system, change system damping characteristics and improve system stability.

Heat Dissipation Mode

Technical Specifications

Name	Specification
Rated voltage	6kV±10%～35kV±10%r
Assessment point voltage	6kV±10%～35kV±10%r
Input voltage	0.9~ 1.1pu; LVRT 0pu(150ms), 0.2pu(625ms)
Frequency	50/60Hz; Allow short-term fluctuations
Output capacity	±0.1Mvar～±200 Mvar
Starting power	±0.005Mvar
Compensation current resolution	0.5A
Response time	<5ms
Overload capacity	>120% 1min
Power loss	<0.8%
THDi	<3%
Power supply	Dual power supply
Control power	380VAC, 220VAC/220VDC
Reactive power regulation mode	Capacitive and inductive automatic continuous smooth adjustment
Communication interface	Ethernet, RS485, CAN, Optical fiber
Communication protocol	Modbus_RTU, Profibus, CDT91, IEC61850- 103/104
Running mode	Constant device reactive power mode, constant assessment point reactive power mode, constant assessment point power factor mode, constant assessment point voltage mode and load compensation mode
Parallel mode	Multi machine parallel networking operation, multi bus comprehensive compensation and multi group FC comprehensive compensation control
Protection	Cell DC overvoltage, Cell DC undervoltage, SVG overcurrent, drive fault, power unit overvoltage, overcurrent, overtemperature and communication fault; Protection input interface, protection output interface, abnormal system power supply and other protection functions.
Fault handling	Adopt redundant design to meet N-2 operation
Cooling mode	Water cooling/Air cooling
IP degree	IP30(indoor); IP44(outdoor)
Storage temperature	-40℃～+70℃
Running temperature	-35℃～ +40℃
Humidity	<90% (25℃), no condensation
Altitude	<=2000m (above 2000m customized)
Earthquake intensity	Ⅷ degree
Pollution level	Grade IV
