FGI's 125kW / 261kWh Liquid-Cooled Energy Storage System Unlock Peak Power and Expand Grid Capabilities for Commercial Industrial

Detail Information

Document:

Highlight:

261kWh Energy Storage System

Product Description

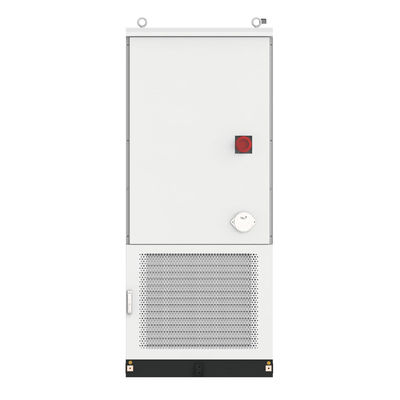

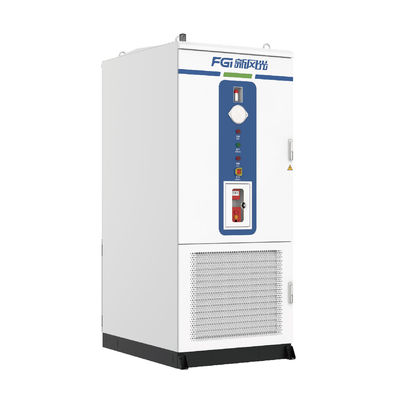

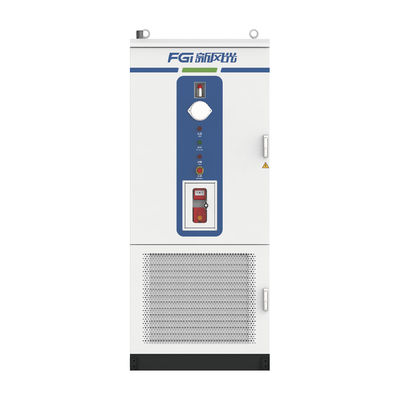

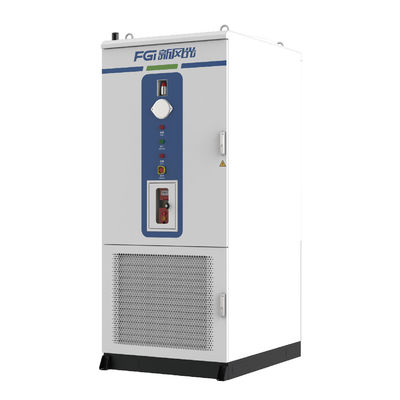

FGI 125kW/261kWh Liquid-Cooled Commercial & Industrial Energy Storage System

Unlock peak power quality, maximize generation, and expand grid capabilities with this advanced energy storage solution.

Key Benefits

Peak Shaving and Valley Filling (Load Leveling): Reduce electricity costs and balance grid load by charging during low-demand periods and discharging during peak demand.
Emergency Power Backup: Prevent significant economic losses from sudden power outages by providing reliable backup power for critical equipment and operations.

Overview

Integrated Design: "All In One" cabinet integrates battery PACK, BMS, PCS, EMS, thermal management, and fire suppression.
Modular and Scalable: Easy expansion through parallel connection of multiple cabinets.
High Performance: Advanced technologies ensure high efficiency, safety, long lifespan, and ease of expansion.
Plug-and-Play: Complete and independent system that's easy to install and operate.
Flexible Deployment: Suitable for industrial/commercial parks, low-voltage distribution stations, highway service areas, gas stations, and airports.
Versatile Applications: Supports integrated photovoltaic storage, charging, and microgrids.
Multiple Operating Modes: Peak-valley arbitrage, anti-backflow, demand control, load tracking, and backup power supply.
Intelligent Cloud Management: Multi-level authority management, custom data reports, and tailored fault alerts.

Internal Layout

Main Functions

Real-time Data Monitoring: Tracks energy generation, storage, consumption, and detailed battery data (charge/discharge, temperature, voltage, current).
Intelligent Energy Control: Optimizes charging/discharging based on real-time demand, grid conditions, and schedules.
Proactive Fault Management: Detects and alerts on potential issues (over-charge/discharge, temperature anomalies) for safe operation.
Cloud-Based Remote O&M: Uploads operational data for remote fault prediction and simplified maintenance.
Benefit Visualization: Displays energy storage benefits and power information.

Technical Specifications

Single energy storage cabinet	125kW / 261kWh
Maximum parallel devices per group	10 units
Maximum parallel capacity per group	1250kW / 2610kWh
Working temperature	-20℃~50℃ (derating at ＞45℃)
Storage temperature	-20℃ ~ 55℃
Noise	< 70dB
Cooling method	Liquid cooling on DC side, air cooling on AC side
Cycle times	6,000 times @25℃, 0.5P, 90% DOD, 70% EOL
Detector Type	Temperature, smoke, H2
Dimensions (widthdepthheight mm)	1,0001,3002,400 mm
Weight	2.8T
Corrosion resistance	C4-M
Protection level	Whole machine: IP55 Battery Pack: IP67 PCS: IP20
Allowable relative humidity	0 ~95% RH (non-condensing)
Allowable altitude	2,000m
Maximum system efficiency	≥ 88% @ 0.5C
Communication Protocol	Modbus TCP/RTU, IEC104, MQTT
System operation mode	Peak reduction and valley filling, Demand Control, Load Following, Anti-backflow function
Certification	Battery: GB/T36276-2023 BMS: GB/T34131-2023 PCS: GB/T34120-2023
