FGI 33kV~35kV Outdoor Type Static Var Generator with Liquid Cooling – Power Quality Solution for PV Stations

FGI 33kV~35kV Outdoor Type Static Var Generator with Liquid Cooling – Power Quality Solution for PV Stations

Detail Information

Product Description

Detail Information

Document:

FGI SVG STATCOM profile.pdf

Highlight:

35kV Static Var Generator

Liquid Cooling Static Var Generator

33kV Static Var Generator

Product Description

FGI 33kV~35kV Outdoor Type Static Var Generator with Liquid Cooling

Power Quality Solution for PV Stations

Key Features & Functions

Extreme Ride-Through: Quickly restores normal operation after grid voltage dips or surges, adapting to various grid conditions without manual intervention.
Voltage Fluctuation Suppression: Dynamically provides reactive current to quickly stabilize voltage and suppress flicker for fluctuating loads.
Reliable Dual Power: Control system features dual power supply (380VAC/220VAC or 220VDC) with seamless online backup switching.
EMC Compliant Enclosure: Anti-interference design passes rigorous EMC tests for robust performance in challenging electromagnetic environments.
Redundant & Stable System: Options for dual-master control system and automatic bypass for power units ensure high availability.

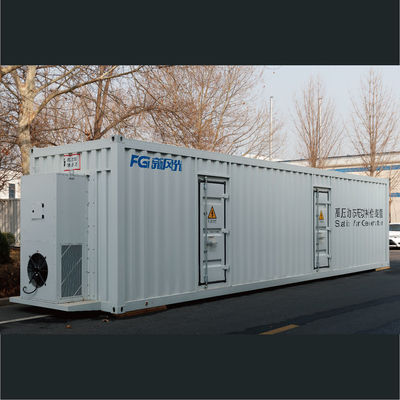

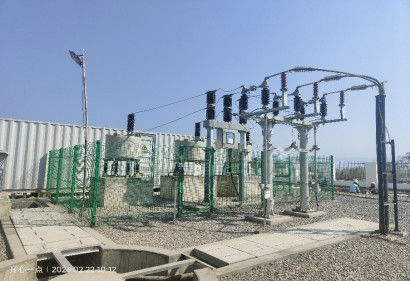

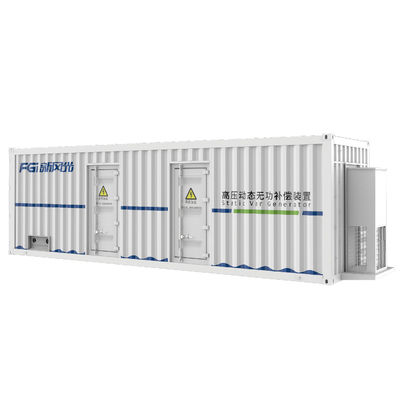

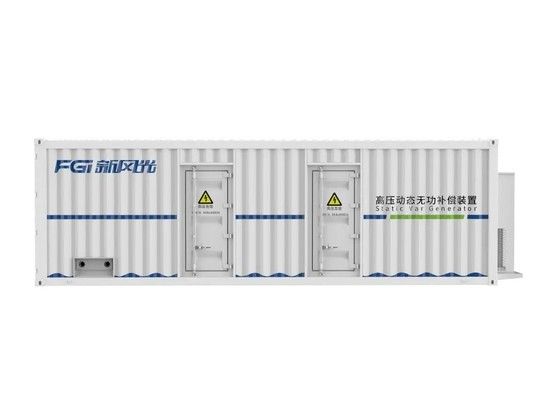

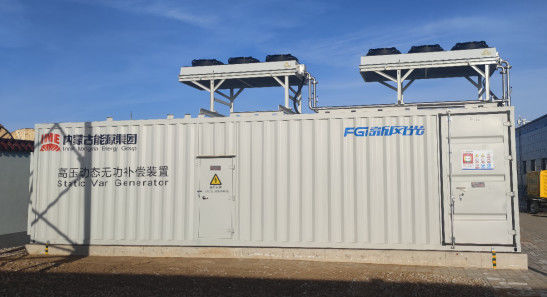

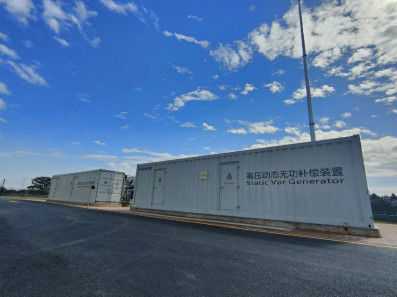

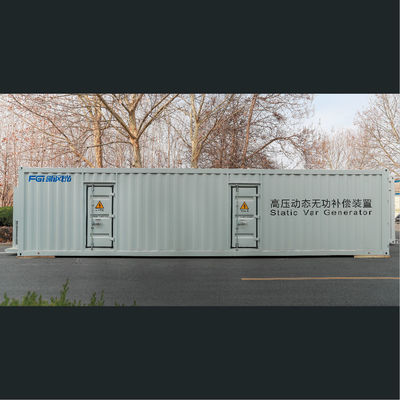

Product Images

Dimensions & Specifications

Voltage class (kV)	Rated capacity (Mvar)	Dimension WDH (mm)	Weight (kg)	Reactor type
33~35	5.0~26.0	1400023502896	19000~23000	Air core reactor
33~35	27.0~50.0	1400027002896	27000~31000	Air core reactor
33~35	51.0~100.0	2800027002896	54000~62000	Air core reactor

Applications

Renewable Energy Integration: Stabilizes voltage in solar and wind farms, improves power factor compliance, and enhances grid reliability.
Industrial Power Quality: Provides dynamic current compensation, reduces energy costs, and enhances equipment protection.
Grid & Transmission Stability: Maintains voltage stability during load variations, regulates power factor, and prevents voltage collapse.

Key Benefits

Stabilizes the grid and avoids penalties by correcting power factor and voltage
Boosts power generation and increases revenue by optimizing inverter efficiency
Extends equipment lifespan by suppressing harmonics and improving power quality
Enhances grid connection capability in areas with limited capacity

Technical Specifications

Parameter	Specification
Rated voltage	33kV±10%～38.5kV±10%
Frequency	50/60Hz; Allow short-term fluctuations
Output capacity	±0.1Mvar～±200 Mvar
Response time	<5ms
Power loss	<0.8%
THDi	<3%
Cooling mode	Water cooling/Air cooling
IP degree	IP30(indoor); IP44(outdoor)
Running temperature	-35℃～ +40℃

Selection Guide

SVG Selection Criteria

Installation Type: Choose between indoor or outdoor units based on site conditions
Capacity: Evaluate necessary capacity based on site requirements
Special Features: Identify any specific needs like harmonic filtering or flicker mitigation
Cooling Method: Select between air-cooled or liquid-cooled systems

Outdoor SVG Characteristics

Environmental Adaptability: High protection level (IP54 or higher) resistant to weather extremes
Modular Design: Enclosed container with built-in cooling, control, and power modules
Cooling System: Powerful cooling solutions for stable operation in harsh environments
Installation: Independent ground installation reduces civil construction costs
Maintenance: Supports remote monitoring and diagnostics
