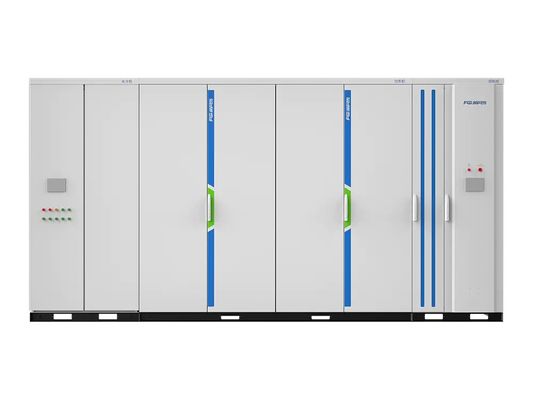

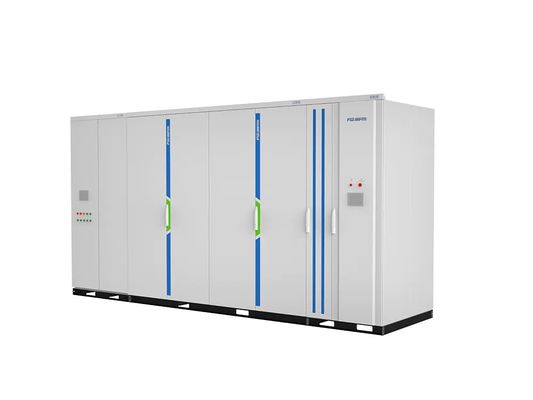

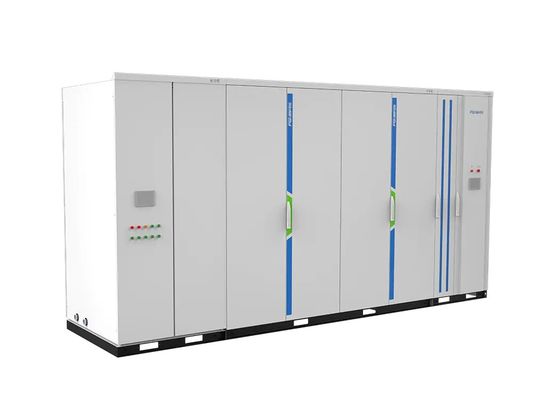

| Name | Specification |
| Rated voltage | 6kV±10%～35kV±10% |
| Assessment point voltage | 6kV±10%～35kV±10% |
| Input voltage | 0.9~ 1.1pu; LVRT 0pu(150ms), 0.2pu(625ms) |
| Frequency | 50/60Hz; Allow short-term fluctuations |
| Output capacity | ±0.1Mvar～±200 Mvar |
| Starting power | ±0.005Mvar |
| Compensation current resolution | 0.5A |
| Response time | <5ms |
| Overload capacity | >120% 1min |
| Power loss | <0.8% |
| THDi | <3% |
| Power supply | Dual power supply |
| Control power | 380VAC, 220VAC/220VDC |
| Reactive power regulation mode | Capacitive and inductive automatic continuous smooth adjustment |
| Communication interface | Ethernet, RS485, CAN, Optical fiber |
| Communication protocol | Modbus_RTU, Profibus, CDT91, IEC61850- 103/104 |
| Running mode | Constant device reactive power mode, constant assessment point reactive power mode, constant assessment point power factor mode, constant assessment point voltage mode and load compensation mode |
| Parallel mode | Multi machine parallel networking operation, multi bus comprehensive compensation and multi group FC comprehensive compensation control |
| Protection | Cell DC overvoltage, Cell DC undervoltage, SVG overcurrent, drive fault, power unit overvoltage, overcurrent, overtemperature and communication fault; Protection input interface, protection output interface, abnormal system power supply and other protection functions. |
| Fault handling | Adopt redundant design to meet N-2 operation |
| Cooling mode | Water cooling/Air cooling |
| IP degree | IP30(indoor); IP44(outdoor) |
| Storage temperature | -40℃～+70℃ |
| Running temperature | -35℃～ +40℃ |
| Humidity | <90% (25℃), no condensation |
| Altitude | <=2000m (above 2000m customized) |
| Earthquake intensity | Ⅷ degree |
| Pollution level | Grade IV |
Application
FGSVG series products can be widely used in petrochemical industry, power system, metallurgy, electrified railway, urban construction and other industries, such as various asynchronous motors, transformers, thyristor converters, frequency converters, induction furnaces, lighting equipment, electric arc furnaces, electric locomotives, hoists, cranes, stamping machines, cranes, elevators, wind turbines, elevators, electric welding machines, resistance furnaces Quartz smelting furnace and other equipment provide high-quality and reliable reactive power compensation and filtering solutions.
FGSVG series products can enhance power transmission capacity, reduce power loss, compensate reactive power, control harmonics, suppress flicker, stabilize grid voltage, balance three-phase system, change system damping characteristics and improve system stability.
Specifications and dimensions
Air cooled type
| Voltage class(kV) | Rated capacity(Mvar) | Dimension W*D*H(mm) |
Weight(kg) | Reactor type |
| 6 | 1.0～2.0 | 3300*1400*2400 | 2290～2850 | Iron core reactor |
| 3.0 | 3400*1400*2400 | 3060 | Iron core reactor | |
| 4.0～5.0 | 4800*1400*2400 | 3750～4260 | Iron core reactor | |
| 6.0～7.0 | 3600*1400*2400 | 2750～3450 | Air core reactor | |
| 8.0～12.0 | 5600*1400*2400 | 4600～5000 | Air core reactor |
Water cooling type
| Voltage class(kV) | Rated capacity(Mvar) | Dimension W*D*H(mm) |
Weight(kg) | Reactor type |
| 6 | 1.0～9.0 | 5200*1400*2600 | 2550 | Air core reactor |
| 10.0～15.0 | 5800*1400*2600 | 2750 | Air core reactor |
Note:
1. Capacity (Mvar) refers to the rated regulation capacity within the dynamic regulation range from inductive reactive power to capacitive reactive power.
2. The air core reactor is used for the equipment, and there is no cabinet, so the placement space needs to be planned separately.
3. The above dimensions are for reference only. The company reserves the right to upgrade and improve the products. The product dimensions are subject to change without notice.
