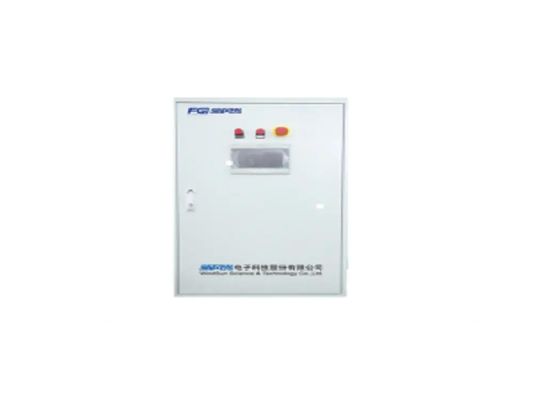

FGAPF Active Power Filter APF Three Phase Three Wire System

Name: FGAPF Active Power Filter APF Three Phase Three Wire System
Brand: WindSun Science & Technology Co.,Ltd.
Price: 1,000,000.00 USD
Availability: InStock

Detail Information

Product Description

Detail Information

Place of Origin:

China

Rated Compensation Current:

Three-phase Three-wire System: 100A-600A; Three-phase Four-wire System: 50A-600A

Operating Voltage:

Three-phase Three-wire System: 400V (-20% ~ +15%) ,690V (-20% ~ +15%); Three-phase Four-wire System: 400V (-20% ~ +15%)

Operating Frequency:

50Hz, 60Hz

Filtering Capacity:

THDi <3% (rated)

Filtering Range:

2nd ~ 50th Harmonic, Eliminating All Specified Harmonics

Instantaneous Response Time:

<100us

Highlight:

Active power filter APF

APF Three Phase

FGAPF Three Wire System

Product Description

FGAPF Active power filter (APF)

Technical parameters:

Compensation rate adjustment for single harmonics: Compensation current limit for each harmonic is available
Full response time Active power loss Correction of three-phase unbalance Yes
Reactive power compensation function Yes, power factor can be set
Overload protection Automatic current limit at 100% rated output
Display interface Chinese color touch screen
Display parameters Grid parameters such as current and voltage
Communication Modbus,RS485,TCP/IP Ethernet
Stand-alone operation possible
Parallel operation Multiple parallel machines are possible
Ambient temperature -10℃~45℃
Relative humidity 90% max.
Installation conditions Indoor installation
Altitude below 1000m (please contact the manufacturer for higher altitude)

Note:
1. The above dimensions are for reference only, please refer to the actual
2. Due to product upgrade, the page content will be updated regularly, if you need to buy our products, please refer to the latest manual.
