FGI 10kV~13.8kV Indoor Static Var Generator Air Cooling Compact High Performance Standards Compliant

Detail Information

Highlight:

10kV var generator

Product Description

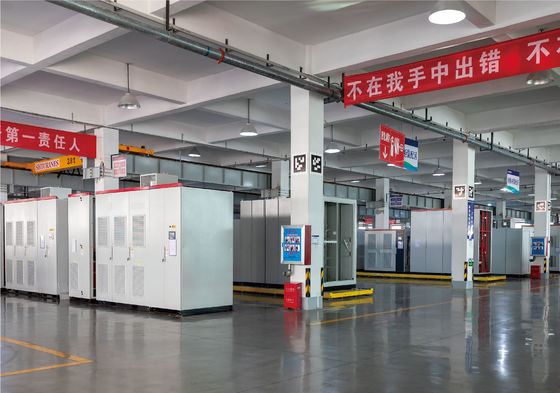

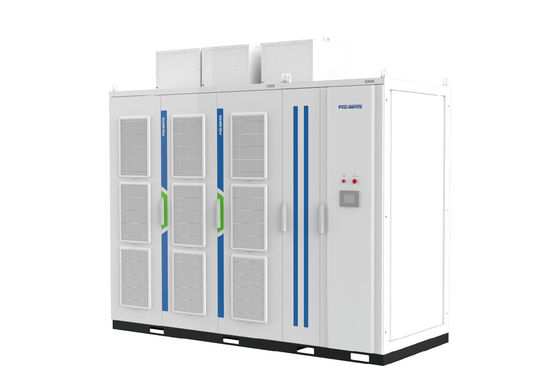

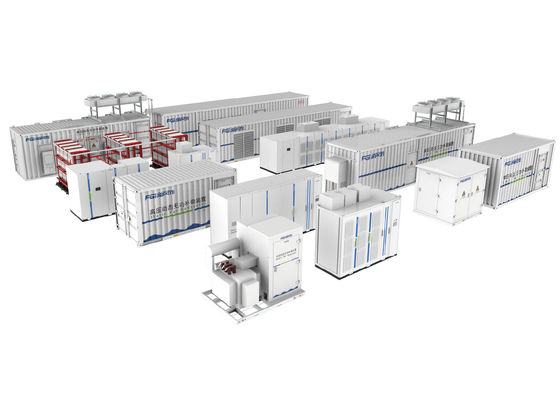

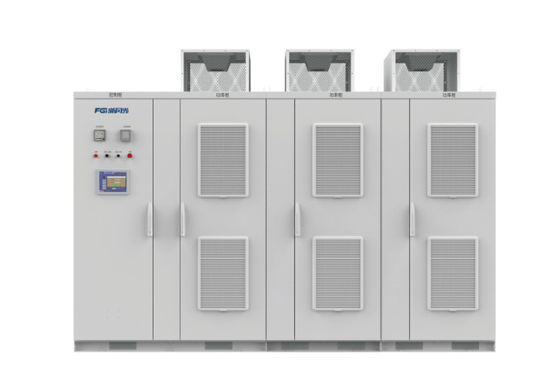

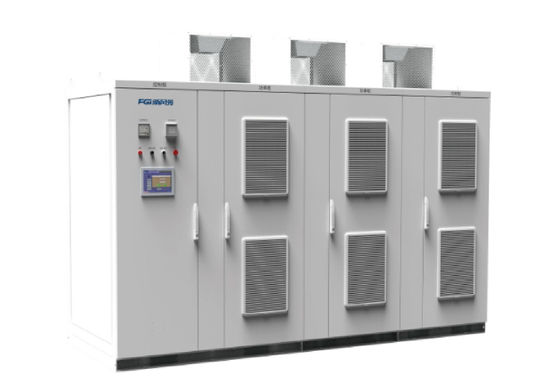

FGI 10kV~13.8kV Indoor Type Static Var Generator with Air Cooling

Compact, high-performance static var generator compliant with industry standards for superior grid stabilization and power quality management.

Key Features & Functions

Extreme Ride-Through: Rapid restoration after grid voltage dips/surges with automatic adaptation to various grid conditions.
Voltage Fluctuation Suppression: Dynamic reactive current provision to stabilize voltage and suppress flicker in fluctuating load environments.
Reliable Dual Power: Control system features 380VAC/220VAC or 220VDC dual power supply with seamless online backup switching.
EMC Compliant Enclosure: Anti-interference cabinet design passes rigorous EMC tests for robust electromagnetic performance.
Redundant & Stable System: Optional dual-master control system and automatic bypass for power units ensure high availability.

Product Dimensions

Voltage Class (kV)	Rated Capacity (Mvar)	Dimensions W×D×H (mm)	Weight (kg)	Reactor Type
10~13.8	1.0～2.0	4500×1400×2600	2000～3150	Iron core reactor
10~13.8	3.0	4500×1400×2600	2000～3600	Iron core reactor
10~13.8	4.0	4500×1400×2600	2000～4000	Iron core reactor
10~13.8	5.0	4500×1400×2600	4500	Iron core reactor
10~13.8	6.0	3400×1400×2600	2500	Air core reactor
10~13.8	7.0～8.0	6900×1400×2600	6350	Iron core reactor
10~13.8	9.0～10.0	5600×1400×2600	4200	Air core reactor
10~13.8	11.0～12.0	5700×1400×2600	4200	Air core reactor
10~13.8	13.0～21.0	9500×1400×2600	7000～9200	Air core reactor

Industry Applications

Renewable Energy Integration: Stabilizes voltage fluctuations in solar/wind farms, improves power factor compliance, and enhances grid reliability.
Industrial Power Quality: Provides dynamic current compensation for heavy industrial loads, reducing energy costs and protecting equipment.
Grid Transmission Stability: Maintains voltage stability during load variations in long-distance power transmission.

Operational Benefits

Stabilizes grid operation and avoids regulatory penalties by maintaining power quality standards
Boosts power generation efficiency and increases revenue through optimized inverter performance
Extends equipment lifespan by suppressing harmonics and improving overall power quality
Enhances grid connection capacity in areas with limited infrastructure

Technical Specifications

Parameter	Specification
Rated voltage	10kV±10%～13.8kV±10%
Input voltage	0.9~1.1pu; LVRT 0pu(150ms), 0.2pu(625ms)
Frequency	50/60Hz; Allow short-term fluctuations
Output capacity	±0.1Mvar～±200 Mvar
Response time	<5ms
Power loss	<0.8%
THDi	<3%
Cooling mode	Water cooling/Air cooling
IP degree	IP30(indoor); IP44(outdoor)
Operating temperature	-35℃～+40℃

Selection Guide

Installation Type: Choose between indoor or outdoor units based on site conditions
Capacity Planning: Evaluate required capacity based on specific application needs
Special Features: Consider advanced harmonic filtering or flicker mitigation if required
Cooling Method: Select air-cooled or liquid-cooled systems according to environmental conditions

Indoor SVG Characteristics

Controlled environment installation in electrical/control rooms with stable conditions
Compact structure for space-efficient integration into existing systems
Simplified maintenance unaffected by weather conditions
Flexible cooling options with lower noise levels
Higher infrastructure requirements including dedicated rooms and EMI protection
