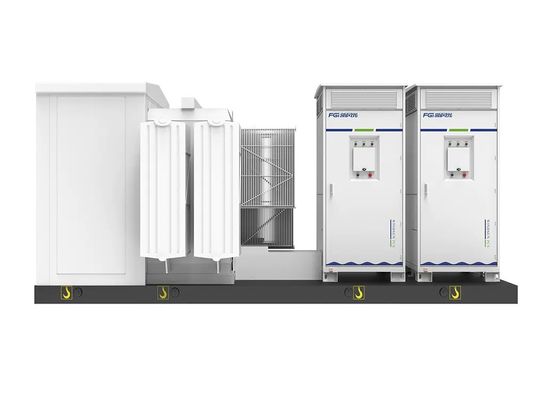

FGPCS-2.50M/0.5 Energy Storage Converter 1500V Booster Integrated Machine RS485 CAN Ethernet

Name: FGPCS-2.50M/0.5 Energy Storage Converter 1500V Booster Integrated Machine RS485 CAN Ethernet
Brand: WindSun Science & Technology Co.,Ltd.
SKU: FGPCS-2.50M/0.5
Price: 1,000,000.00 USD
Availability: InStock

Model Number:	FGPCS-2.50M/0.5

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

FGPCS-2.50M/0.5

Max DC Input Voltage:

1500V

DC Input Voltage Range:

730~1500V

Max DC Input Current:

1936A*2

DC Input Channels:

Rated AC Power (On-Grid):

2500kVA@45℃ /2750kVA@30℃

Max AC Current (On-Grid):

2886A@45℃/3175A@30℃

Rated AC Voltage (On-Grid):

500V

AC Voltage Range (On-Grid):

425-550V

Rated Frequency Range (On-Grid):

50 Hz; 60Hz

AC THDi (On-Grid):

<1.5% (Full Load)

Power Factor (On-Grid):

＞0.99(＞20% Load)

Reactive Power Adjustment (On-Grid):

-1~+1

Rated AC Voltage (Off-Grid):

500V

AC Voltage Range (Off-Grid):

425-550V

AC THDv (Off-Grid):

<1.5% (Linear Load)

Unbalanced Load Capacity (Off-Grid):

100%

Rated Frequency Range (Off-Grid):

50 Hz; 60Hz

Transformer Isolation Type:

Dry Type/ Oil Type Transformer Isolated

Transformer Rated Power:

2500kVA

Transformer Max Power:

2750kVA

LV/MV:

0.5kV/35kV

Max Efficiency:

99%

Protection Degree:

IP65(converter), IP54(others)

Running Temperature:

-30~+60℃ (>45℃ Derating)

Allowable Humidity:

0~100% (No Condensation)

Altitude:

5000m (>2000m Derating)

Cooling Mode:

Intelligent Forced Air Cooling

Communication:

RS485, CAN, Ethernet

Dimension (W*H*D):

7200×3000×3000mm (Dry Type), 6200×2400×2600mm (Oil Type)

Weight:

15000kg (Dry Type), 14000kg (Oil Type)

Highlight:

FGPCS-2.50M/0.5 Energy Storage Converter

Energy Storage Converter RS485

Product Description

1500V Energy storage converter booster integrated machine

Product Features:

• Strong grid adaptability, meet 35kV and lower voltage levels
• Three level topology, with maximum efficiency of 99%
• Intelligent air cooling, 45 ℃ ambient temperature without derating
• Wide operating voltage range, 1500V full load operation
• High protection level (converter IP65, other IP54)
• With VSG, VF, PQ, black start and automatic grid on/off switching
• supporting high/low voltage ride through
• Support multiple machines in parallel for easy expansion

Electrical schematic diagram:

Note:
1. The above dimensions are for reference only, please refer to the actual object for details;
2. Due to product upgrading, the content of this page will be updated regularly. If you need to purchase our products, please follow the latest product manual.
