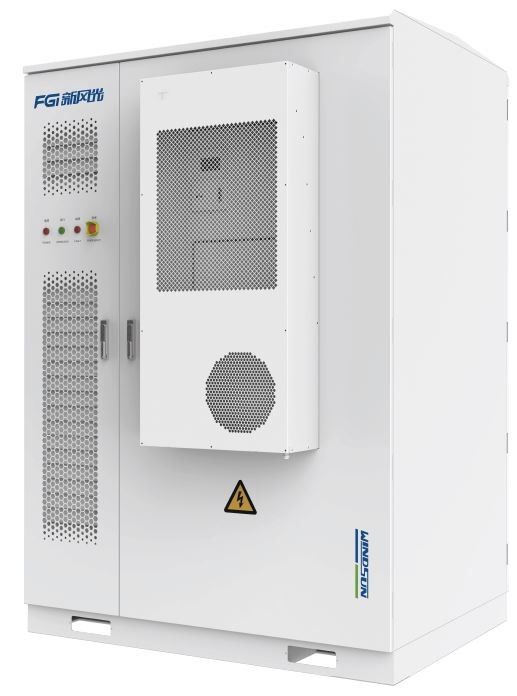

Wind Cooling Commercial And Industrial Energy Storage System ESS 400V IP54

Model Number:	FGESS-215K/100K-0.4O

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cell Type:

LFP 3.2V/280Ah

Battery PACK Configuration:

14.336kWh/1P16S

Battery System Configuration:

215kWh/1P240S

Battery Voltage Range:

672~864V

DC Protection:

Circuit Breaker+Fuse

Battery PACK IP Degree:

IP20

AC Rated Power:

100kW

Maximum AC Power:

120kW

THDi:

≤3%(Full Load)

DC Component:

≤0.5%Ipn

Grid Rated Voltage:

400V

Grid Rated Frequency:

50Hz

Adjustable Range Of PF:

-1~+1

Conversion Time Of Charge/discharge:

<100ms

Maximum System Efficiency:

≥86%&0.5P

Charge/discharge Ratio:

≤0.5P

Discharge Depth:

5~95%DOD

Noise:

≤75dB

Refrigerating Capacity:

5.0kW

Cycle Times:

6000

Communication Interface:

LAN/485

Dimensions (W*D*H):

1650*1200*2400mm

Cooling Method:

Wind Cooling

Operation Temperature:

-20℃~+50℃ (>45℃derating)

Relative Humidity:

0~95%RH，no Condensation

Altitude:

≤2000m

Refrigeration Input Power:

2.4kW

Fire Protection System:

Perfluorohexanone

IP Degree:

IP54

Weight:

2800kg

Highlight:

400V Energy Storage System

IP54 Energy Storage System

Wind Cooling Energy Storage System

Product Description

Overview:

The equipment adopts “All In One” modular design. The battery PACK, battery management system (BMS), energy management system (EMS), power conversion system (PCS), temperature control system (TCS) and fire protection system (FPS) are integrated into one cabinet, forming a standardized, plug-and-play modular energy storage system.

Product Features:

High safety

Single battery cluster design avoiding capacity loss due to parallel connection and decreasing the thermal runaway risk, Immersion active fire protection and intelligent safety warning.

High performance

Support multi-stage parallel connection, demand control function, anti-backflow function and load tracking function.

High flexibility

Integrated design to decrease footprint and make construction easier and capacity expansion more flexible.

High intelligence

Distributed database function, health management and active operations and maintenance function, cloud-edge collaborative energy scheduling function.

Electrical schematic diagram:

Note:
1. The above dimensions are for reference only, please refer to the actual object for details;
2. Due to product upgrading, the content of this page will be updated regularly. If you need to purchase our products, please follow the latest product manual.
