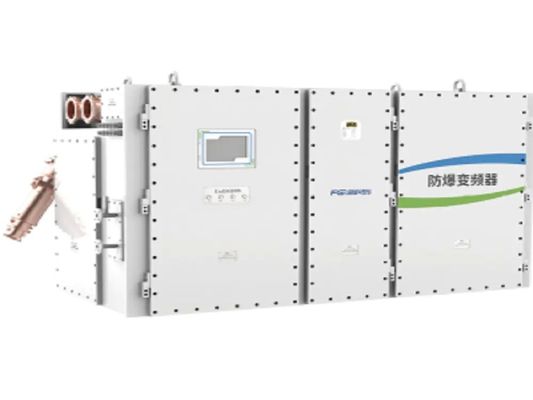

3.3kV / 6kV / 10kV Safe Variable Frequency Drive Mine Flame Proof And Intrinsically VFD

Detail Information

Product Description

Detail Information

Place of Origin:

China

Input Phase:

3 Phase

Input Frequency:

50Hz, 60Hz

Input Voltage:

3.3kV, 6.6kV, 10kV

Allowable Fluctuation:

Power Supply Voltage ±20%, 50-60Hz±5%, Voltage Imbalance Rate <3%

Output Rated Voltage:

3.3kV, 6.6kV, 10kV

Output Rated Current:

100% Rated Current Continuous

Highlight:

Flame Proof VFD drives

6kV Variable Frequency Drive

10kV VFD

Product Description

3.3kV/6kV/10kV Mine flame-proof and intrinsically safe variable frequency drive (VFD)

Specification Model:

Diagram of external dimensions:

Model description

Model	Rated power (kW)	Rated input voltage (kV)	Range of output voltage (kV)	Cooling method	Size(mm)
Model	Rated power (kW)	Rated input voltage (kV)	Range of output voltage (kV)	Cooling method	W	D	H
BPBJV2-525/10/3.3~ BPBJV2-1600/10/3.3	525,855,1000,1200,1400,1600	10	3.3	water cooling	3000	1400	1800
BPBJV2-525/6/3.3~ BPBJV2-1600/6/3.3		6	3.3	water cooling	3000	1400	1800
BPBJV2-525/6/6~ BPBJV2-1600/6/6		6	6	water cooling	3000	1400	1800
BPBJV2-525/10/10~ BPBJV2-2200/10/10	525,855,1000, 1200,1400,1600, 1800,2000,2200	10	10	water cooling	3300	1400	1800
BPBJV2-1800/6/6~ BPBJV2-2200/6/6	1800,2000,2200	6	6	water cooling	3300	1400	1800
BPBJV2-1800/10/3.3~ BPBJV2-2200/10/3.3		10	3.3	water cooling	3300	1400	1800
BPBJV2-1800/6/3.3~ BPBJV2-2200/6/3.3		6	3.3	water cooling	3300	1400	1800
BPJ1-3×525/3.3~ BPJ1-3×1600/3.3	525,855,1000,1200,1400,1600	3.3或2×1905	3.3	water cooling	3280	1120	1500
BPBJV1-2×1600/10/3.3	525,855,1000,1200,1400,1600	10	3.3	water cooling	3300	1400	1800
BPBJV1-2X1600/6/3.3	525,855,1000,1200,1400,1600	6	3.3	water cooling	3300	1400	1800

Note:

1. The above dimensions are for reference only, please refer to the actual
2. Due to product upgrade, the page content will be updated regularly, if you need to buy our products, please refer to the latest manual.
