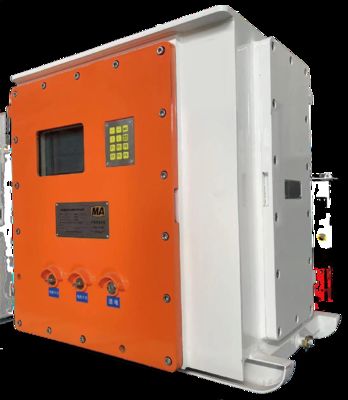

FGI Mining Lithium-Ion Power Supply Safe Durable Maintenance Free Backup Power For Harsh Underground Environments

FGI Mining Lithium-Ion Power Supply Safe Durable Maintenance Free Backup Power For Harsh Underground Environments

Detail Information
Highlight:

Mining Lithium-Ion Power Supply

,

Safe Lithium-Ion Power Supply

,

Durable Lithium-Ion Power Supply

Product Description
FGI Mining Lithium-Ion Power Supply – Safe, Durable, and Maintenance-Free Backup Power for Harsh Underground Environments
FGI Mining Lithium-Ion Power Supply Safe Durable Maintenance Free Backup Power For Harsh Underground Environments 0
Technical Specifications
Model Specification DXJL1536/127J(R) DXJL3072/127J(R) DXJL6528/220J
Battery Capacity 1536Wh 3072Wh 6528Wh
Load Capacity 750W 1200W 2500W
Output Voltage AC127V/DC24V/ib24V AC127V/DC48V/ib24V AC220V/AC127V/DC110V/ib24V
Input Voltage AC127V AC1140V/660V,AC127V
Single Cell Data Nominal Voltage: 3.2V, Charge Cut-off Voltage: 3.5V, Discharge Cut-off Voltage: 2.75V
Rated Capacity: 60Ah, Maximum Operating Temperature: 60°C, Minimum Charging Temperature: 0°C
Number of Batteries 8 16 34
Cycle Life ≥2000 times
Number of Output Circuits 2 8 16
Communication Protocol Modbus RTU (Serial) / Modbus TCP (Ethernet)
Battery & BMS
FGI Mining Lithium-Ion Power Supply Safe Durable Maintenance Free Backup Power For Harsh Underground Environments 1
  • Ultra-Durable: Equipped with lithium iron phosphate (LiFePO₄) battery packs, with a cycle life of over 2000 cycles.
  • High-Efficiency Balancing: Utilizes full-time active balancing technology to ensure long-term battery balance.
  • Accurate Monitoring: Incorporates battery electrochemical modeling and internal resistance tracking technology for precise state-of-charge measurement.
  • Self-Charging Capability: Features pre-charge management technology for lithium batteries, enabling autonomous activation and charging.
  • Comprehensive Protection: Complete protection against over-temperature, overcharge, over-discharge, overcurrent, short circuit, and rapid temperature rise.
Intelligent Control System
  • Personalized Human-Machine Interface: Equipped with a 7"/10" screen and intrinsically safe buttons, supporting parameter settings, data recording, and more.
  • Intelligent Monitoring: Outputs are equipped with smart circuit breakers, enabling monitoring of voltage, current, power, energy, power factor, and remote control for opening and closing.
  • Ultra-Fast Dual Power Switching: Utilizes voltage sag detection technology to switch between the main power circuit and inverter circuit. Supports dual power supply (external and battery), with switching time less than 10 ms.
  • Safety Interlocking: Output circuits feature leakage protection and interlocking with leakage, gas, and wind power fault signals for enhanced safety.
  • High Communication Compatibility: Supports both Modbus RTU (serial port) and Modbus TCP (Ethernet port) protocols.
Application Solution for Mining Lithium-Ion Power Supply
FGI Mining Lithium-Ion Power Supply Safe Durable Maintenance Free Backup Power For Harsh Underground Environments 2
